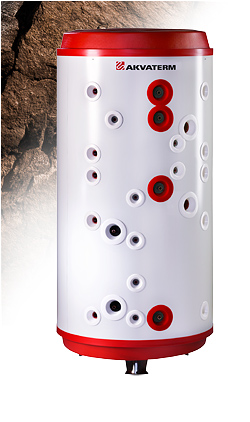

Akvaterm Geo Accumulator Tank







AKVA GEO is suited to all heat sources
With the AKVA GEO you can utilize your heat pumps to all heat demand improving their efficiency. They enable combining heatpumps with renewable heat sources enabling the best output. The model range varies between 300 and 5,000 litres and it comes with the high grade seamless polyurethane familiar from all Akvaterm models. Each AKVA GEO has two domestic hot water coils built in as a default two water coils to improve your coefficiency consuming always initially the lower grade heat.

- An accumulator tank developed for the needs of heat pump customers (heating and hot household water).

- The next-generation, efficiency, two-layer structure supplies plenty of hot household water as the lower buffer area provides preheat to DHW and the energy required by the heating system.

- Versatile customizability and suitability for all heat sources.

Principle connection diagrams

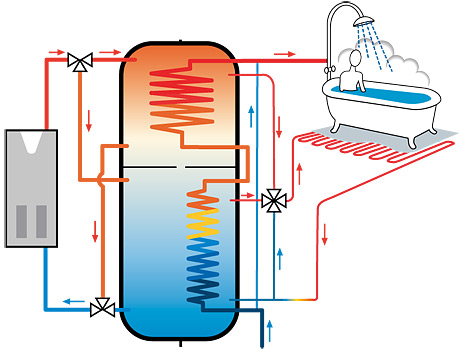

AKVA GEO with a heat pump

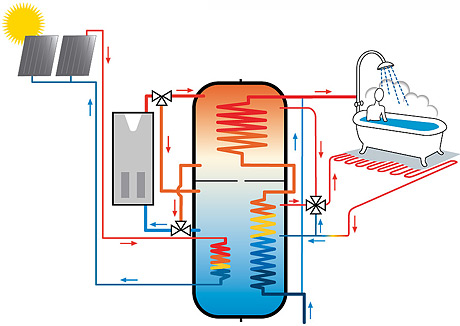

AKVA GEO SOLAR with a heat pump and solar collectors

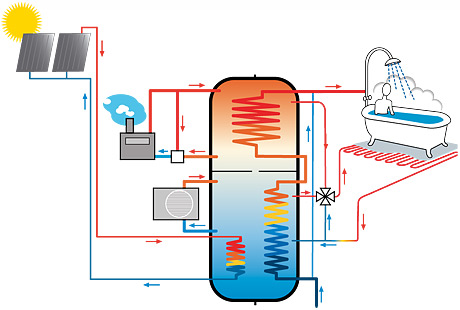

AKVA GEO SOLAR with an air-source heat pump, solar collectors, and a hot-water fireplace

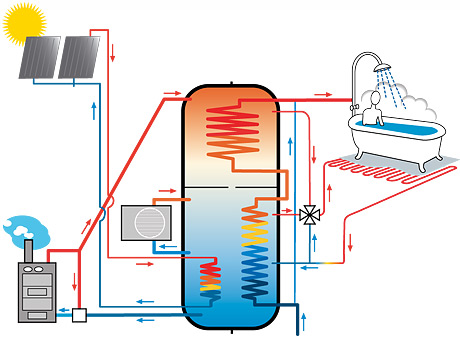

AKVA GEO SOLAR with an air-source heat pump, solar collectors, and a wood-fired boiler

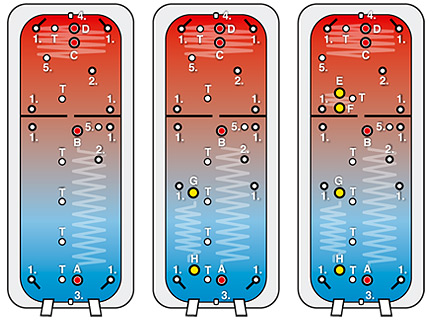

COUPLINGS
1. 1 1/4” Accumulator coupling
2. 2 ” Electric heater coupling
3. 1 " Drain coupling
4. 1 " Pressure relief / Air bleeder
5. 3/4 " Thermostat coupling
T. 10 mm inner diameter coupling (no throughconnection) Sensor and measurement pocket

COILS
A. Ø 22 Household water preheating, in
B. Ø 22 Household water preheating, out
C. Ø 22 Household water, in
D. Ø 22 Household water, out
E. Ø 18 Solar, in (PLUS)
F. Ø 18 Solar, out (PLUS)
G. Ø 18 Solar, in H. Ø 18 Solar, out

- Household water coil (upper) 12.2 m Ø 22 mm Cu (LK45)
- Household water preheating coil (lower) 9.4 m Ø 22 mm Cu (LK35)
- Solar coil 6 m or 12 m (Ø 18 mm Cu)
- The sizes of all coils can be modified according to the application



MODEL

Diameter
Height
Weight

RESISTOR COUPLING

AKVA GEO 300*
810mm
2100mm
150kg
2
AKVA GEO 500
900mm
2100mm
170kg
2
AKVA GEO 750
1050mm
2100mm
200kg
2
AKVA GEO 1000
1150mm
2150mm
230kg
2
AKVA GEO 1200
1250mm
2200mm
250kg
2
AKVA GEO 1500
1350mm
2200mm
280kg
2
AKVA GEO 2000
1500mm
2250mm
330kg
3
AKVA GEO 2500
1500mm
2250mm
360kg
3
AKVA GEO 3000
1600mm
2300mm
400kg
3
AKVAGEO 4000
1800mm
2450mm
480kg
4
AKVAGEO 5000
2000mm
2500mm
600kg
4





- Structural pressure 3 0,4.0 or 6.0 Bar -Thickness of the polyurethane insulation is 150mm up to and including 2000l and 100mm above 2000l capacity

- LK60 and larger coils are installed through hatch.

- The AKVA GEO Solar Plus includes: Extra solar coil 6 m (Ø18mm finned copper) and the SOLAR PLUS valve.

MODEL

Diameter
Height
Weight

RESISTOR COUPLING

AKVASAN GEO 0,5
810mm
1550mm
150kg
2
AKVASAN GEO 0,7
810mm
2050mm
180kg
2

- Insulation 50 mm
- Available also with separate blocks (diameter 710 mm)
- Household water couplings 1/2 ” internal thread and 3/4 ” external thread
- Not available with the Solar Plus accessories
- Structural pressure 3 bar
